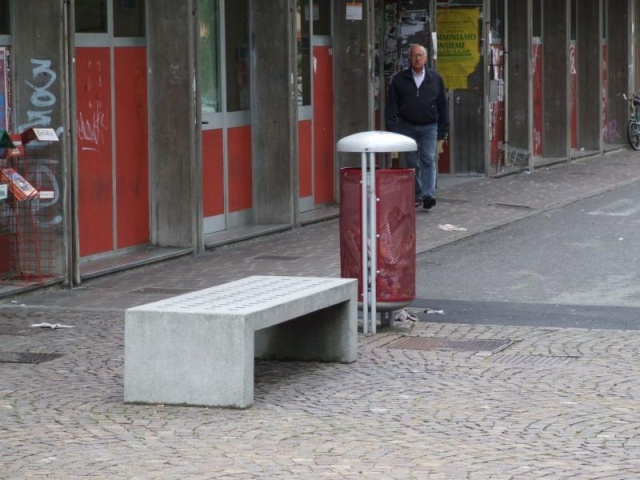

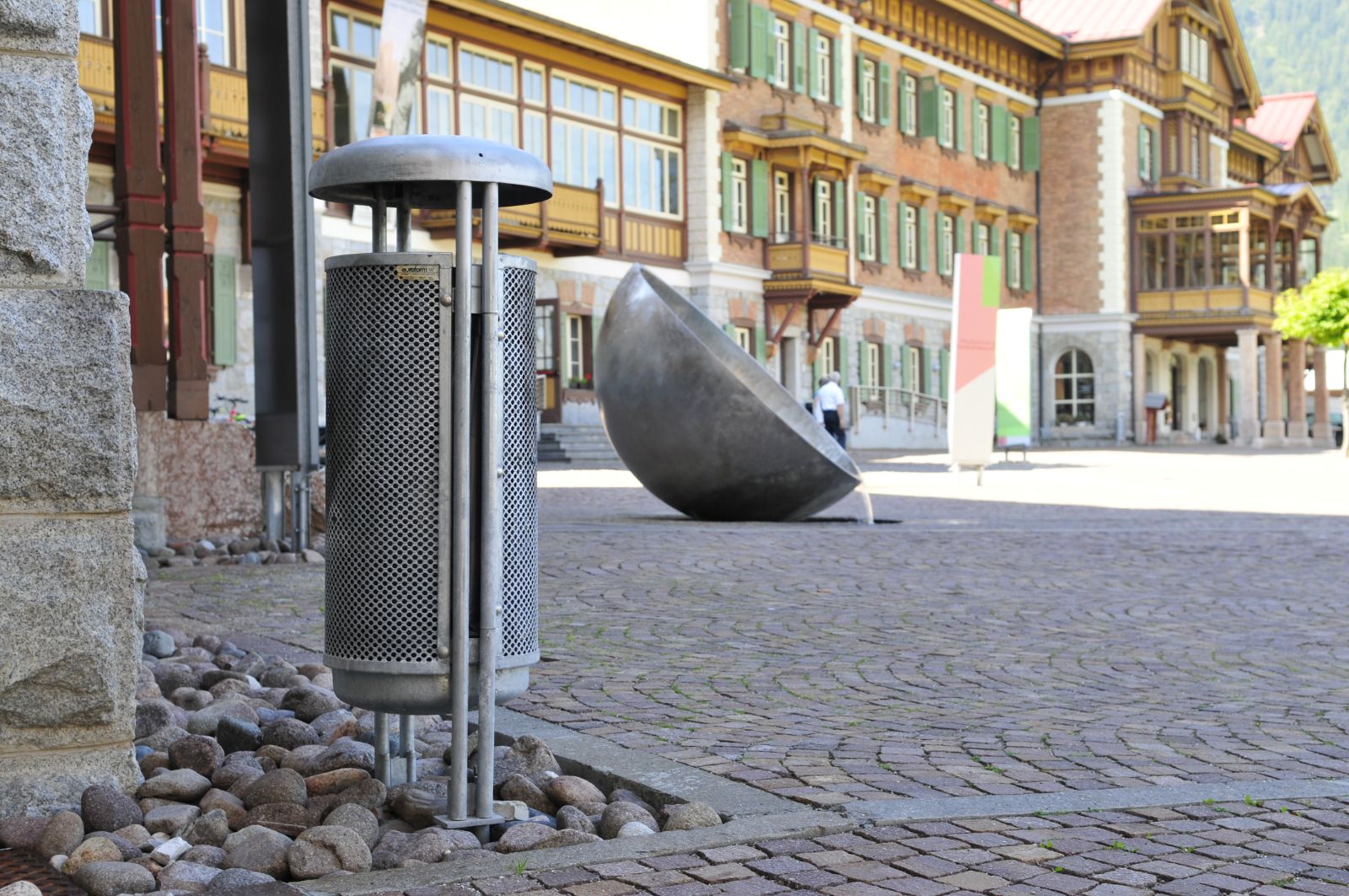

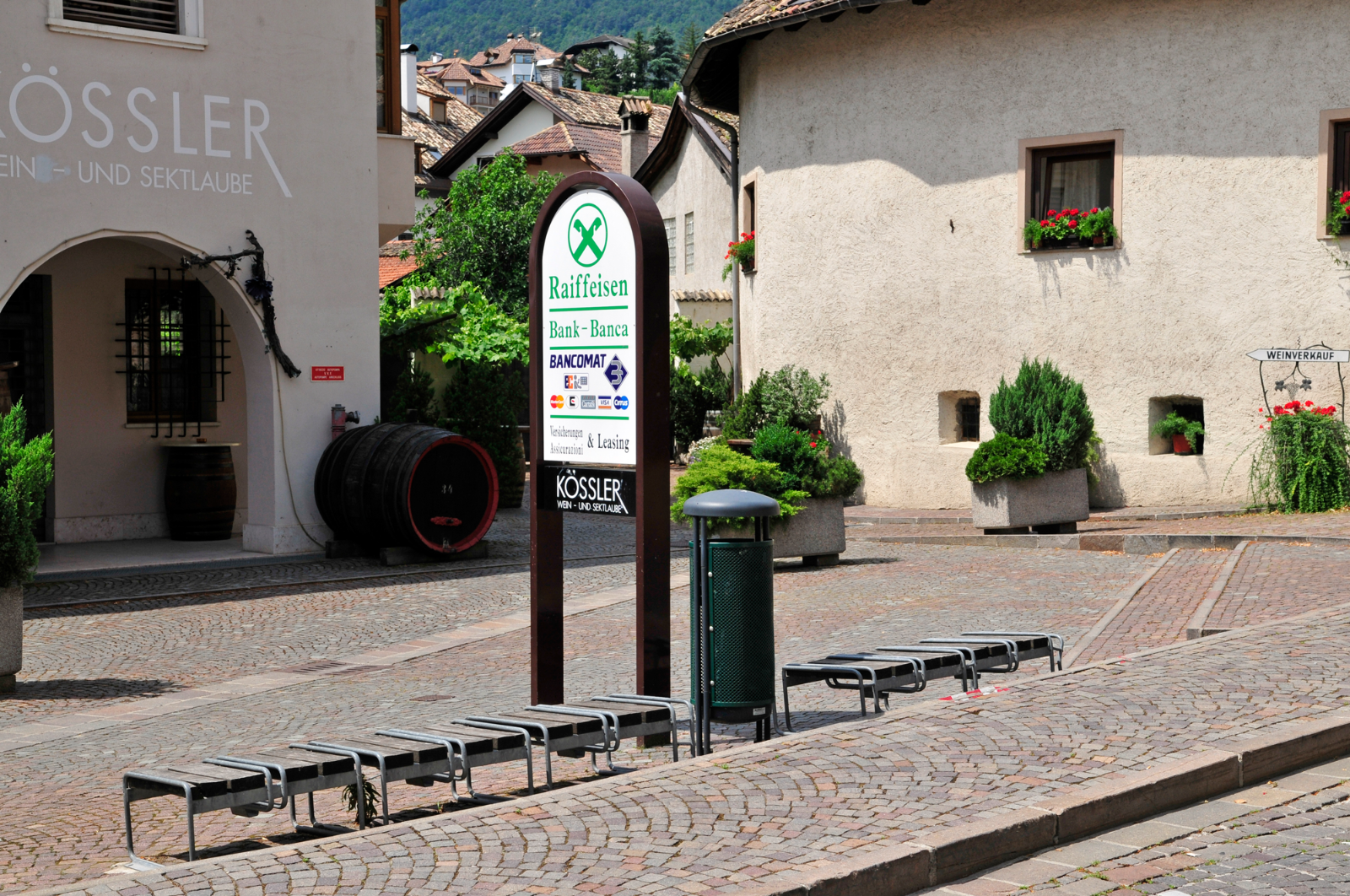

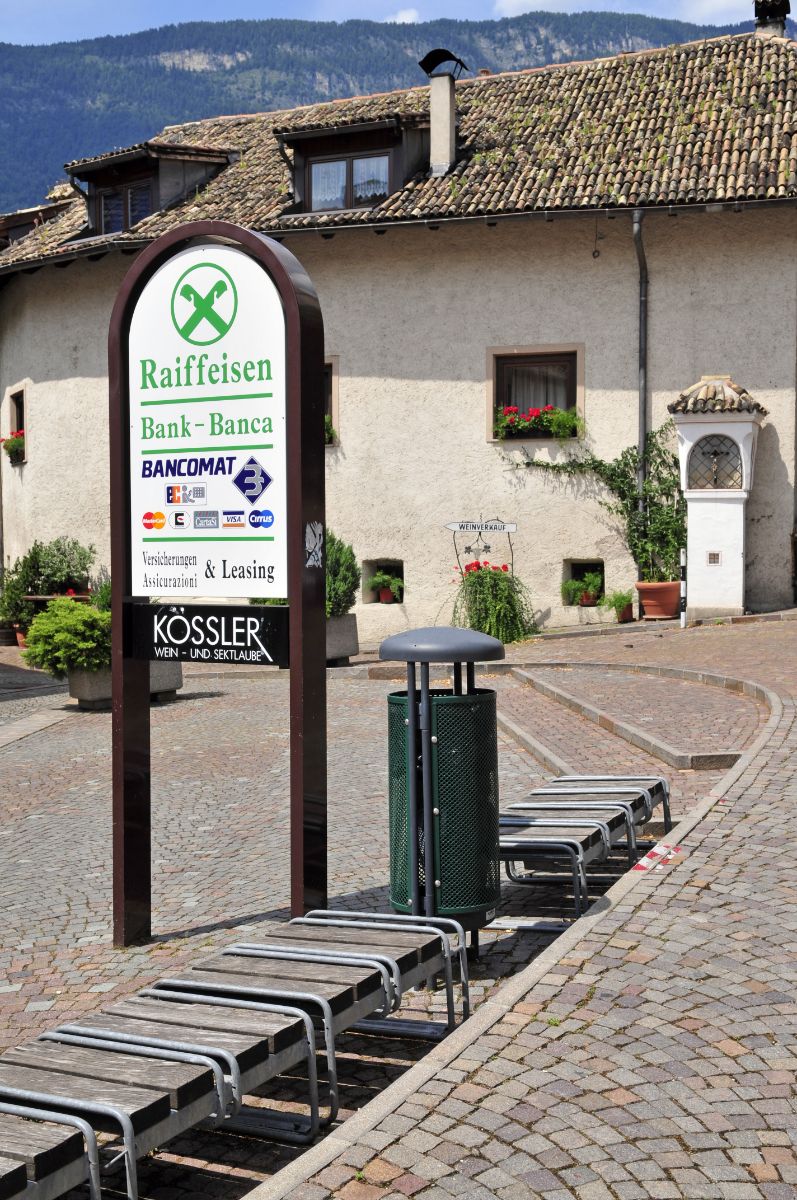

Contour M Litter bin
- Name: Litter bin Contour M
- Designer: Arch. Bernhard Winkler
- Version: with ring or metal liner; with or without integrated ashtray; with or without cover
- Capacity: 45l / 60l / 120l
- Material: metal, hot dip galvanized
- Frame: tubular steel Ø25mm
- Casing: expanded metal sides 1,5mm; rounded edging 6,5mm
- Cover: from metal depth 2mm
- Powder coating: RAL color to choose
- Closing: triangular key, self-closing
- Fixation: fixed in the ground, surface mounting or free-standing
| article no. | dimensions | weight | description |
|---|---|---|---|

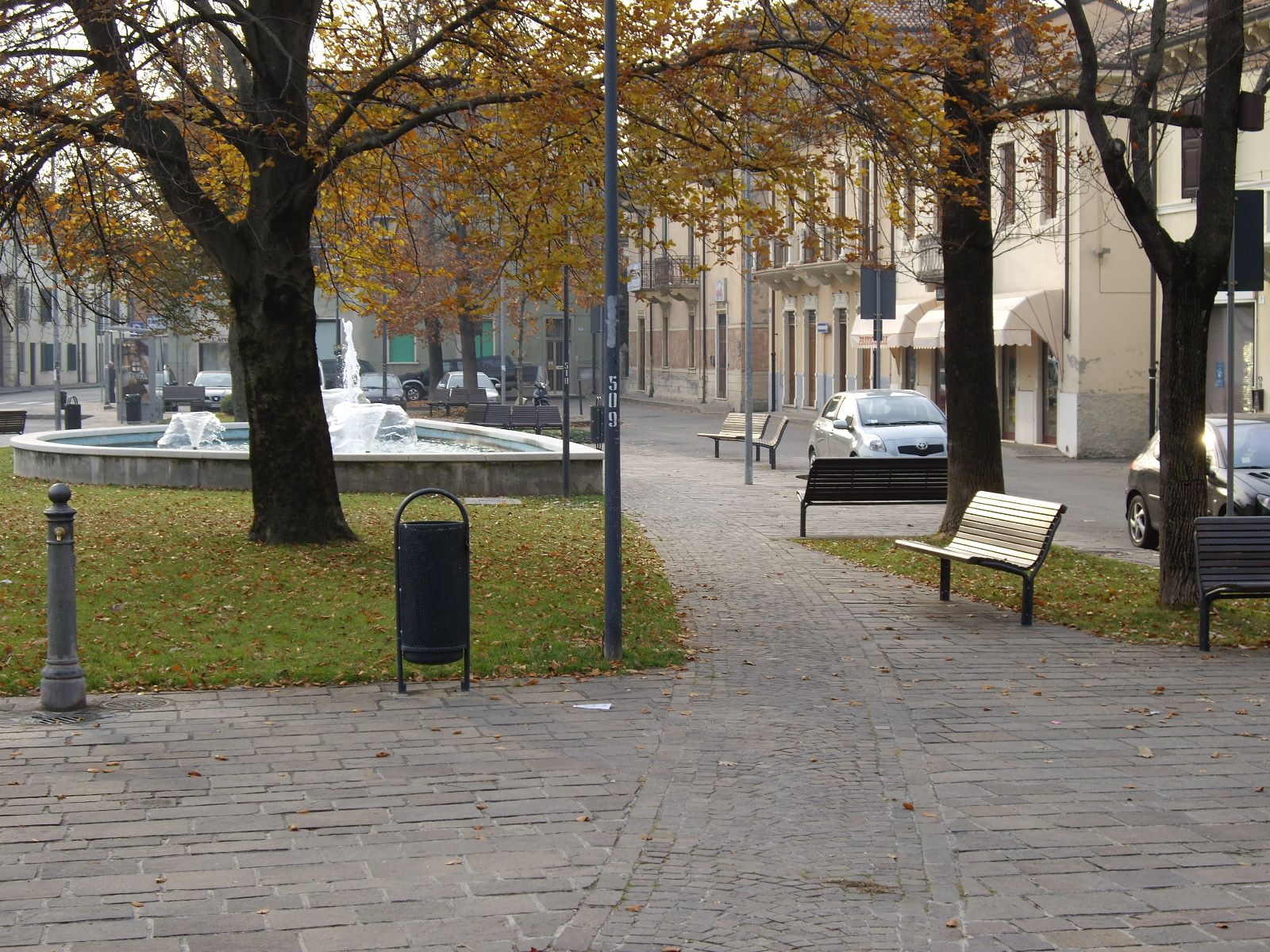

| 275 | 39x36,5x111cm | 18kg | litter bin |

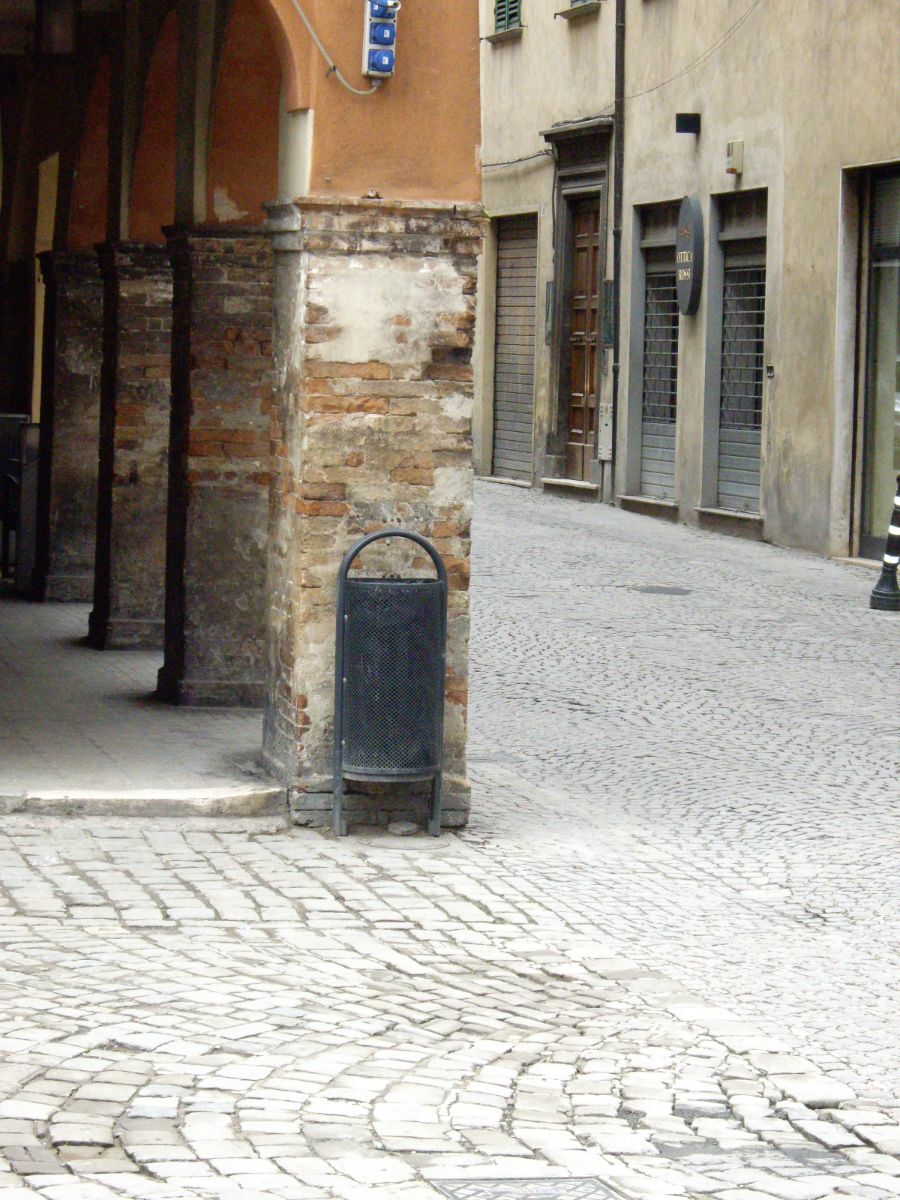

| 275W | 39x27x90cm | 17kg | litter bin wall mounting |

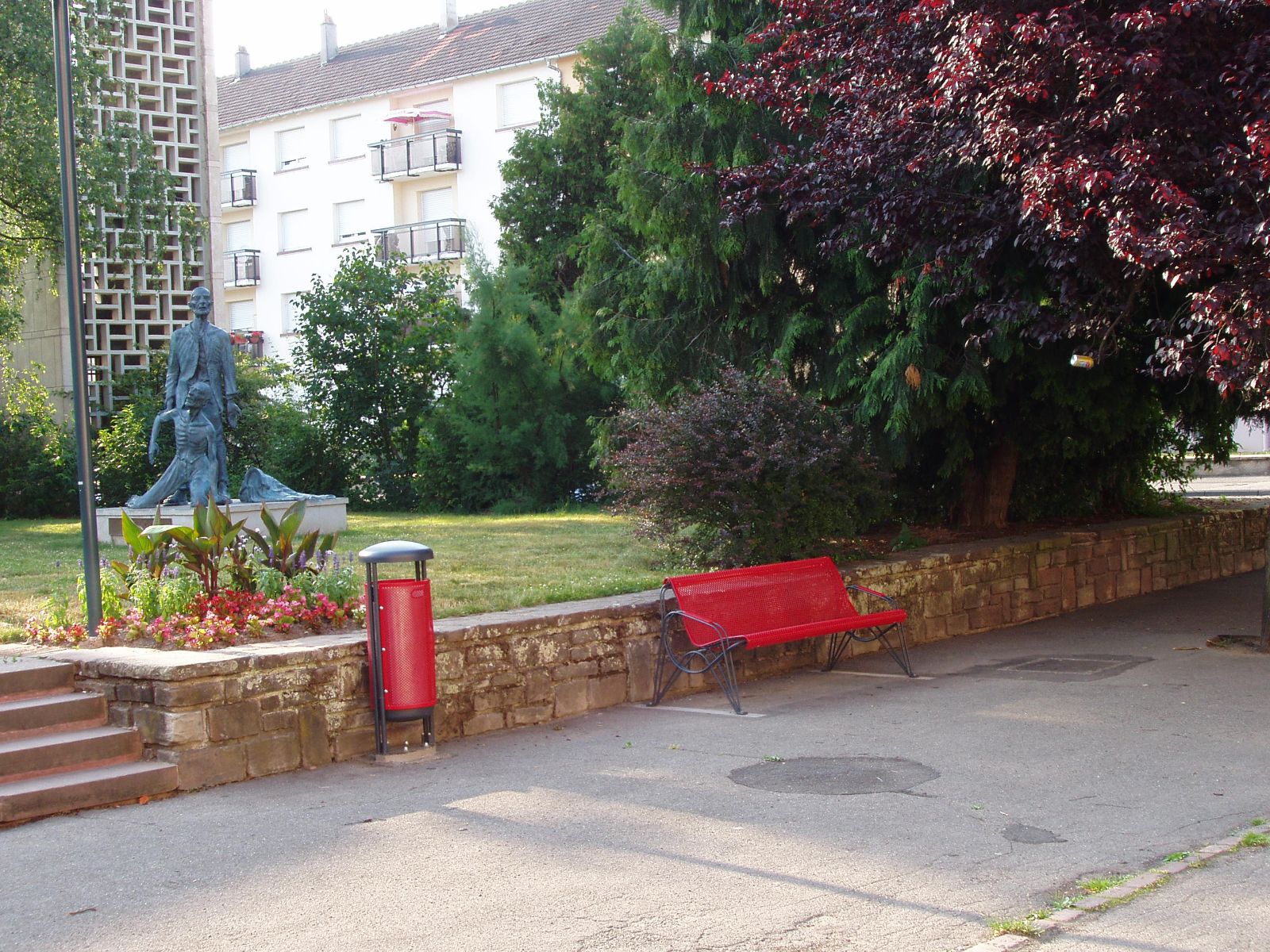

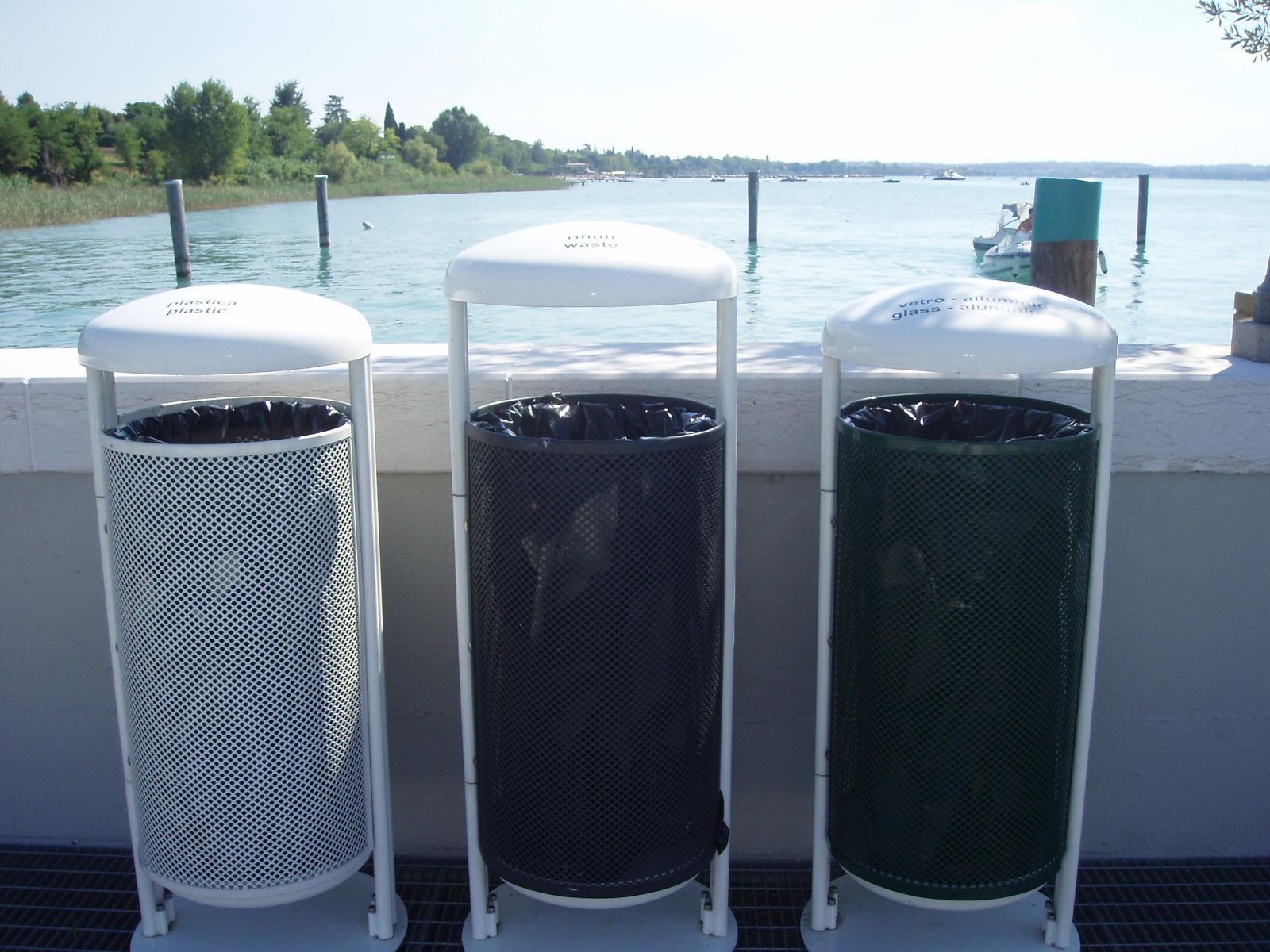

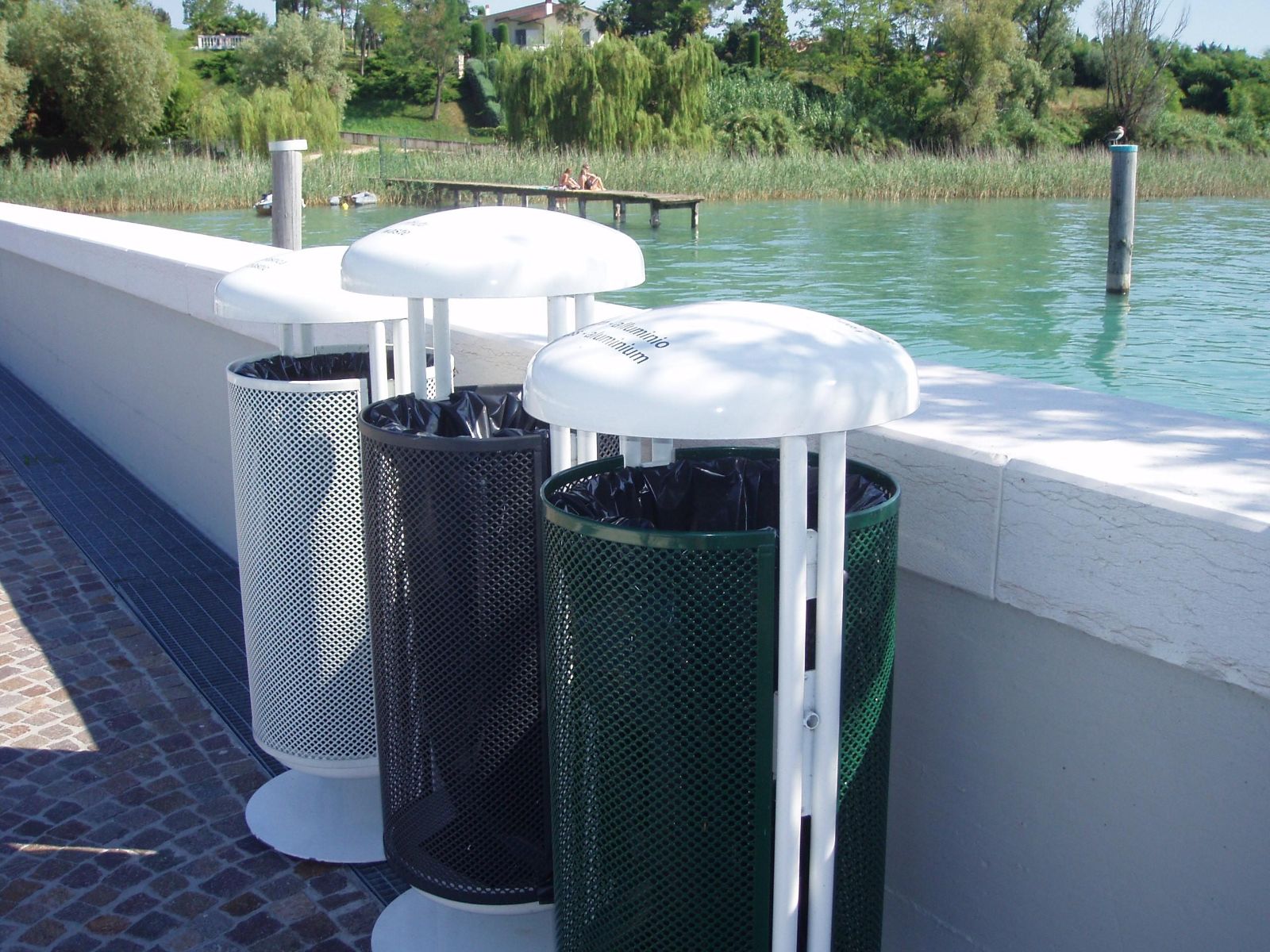

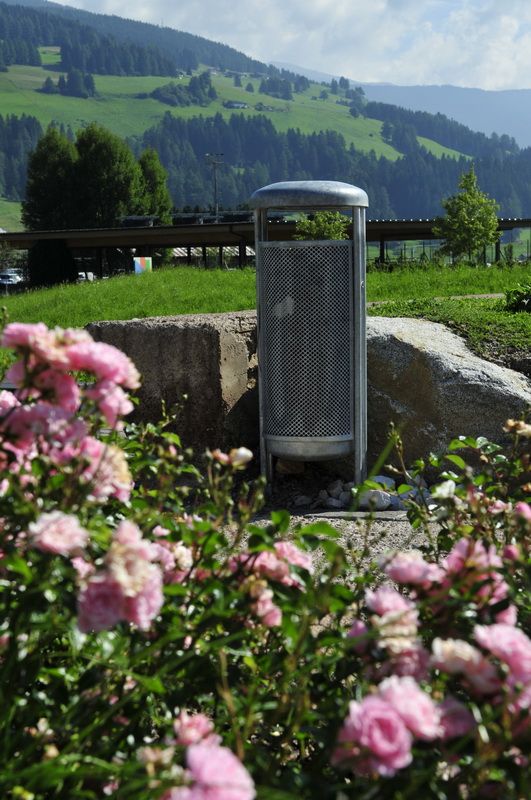

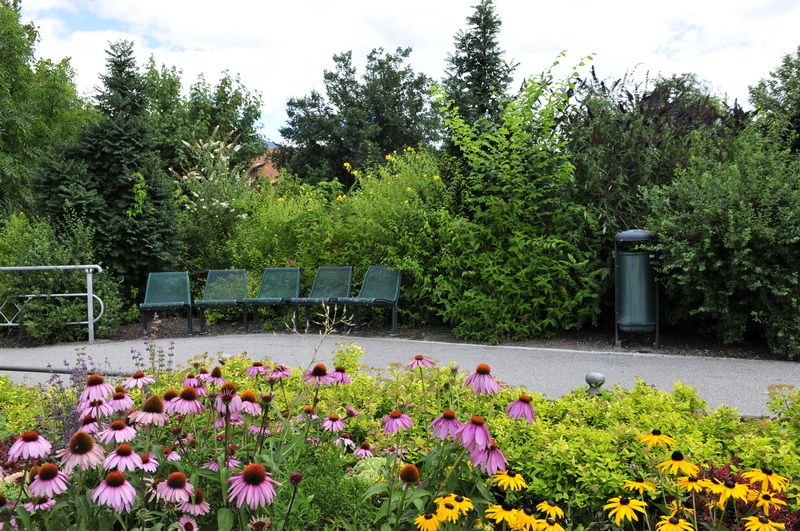

| 276 | 40x40x111cm | 26kg | litter bin with cover |
| 276A | 40x40x111cm | 26kg | litter bin with cover and ashtray |
| 276-120 | 50x50x124cm | 37kg | litter bin with cover |
